Measurement Services
External metrology for series and releases
You need a measurement report or an inspection report for release, series start-up, or a technical clarification. What matters is that measurement values are traceable and clearly assigned to drawing characteristics. This provides a solid basis for decisions and supports claims with reliable evidence.
As an external, independent metrology provider, we measure your components regardless of other services. Our focus is series measurement with a consistent inspection scope so results remain comparable across lots. On request, we provide reports in your preferred format, including statistical evaluations.
Your benefits at a glance
Independent assessment and clear decisions
Results are documented so releases, audits, and claims can be handled faster and with greater confidence.
Efficient series measurement
Recurring inspections are set up to keep results comparable and to reduce effort per series run.
Relief without investment
Measurement, reporting, and evaluation are available externally without building internal capacity.
Security through redundancy and practical relevance
Redundant resources support schedule reliability. Inspection scope and reporting are structured to fit your processes.
Measurement methods and evaluations matched to your task
Personal support
You have technical questions or would like to commission measurement services.
Get in touch with us.
Capacity for series measurement (facts)
- 5 qualified metrology technicians with ISO-GPS experience

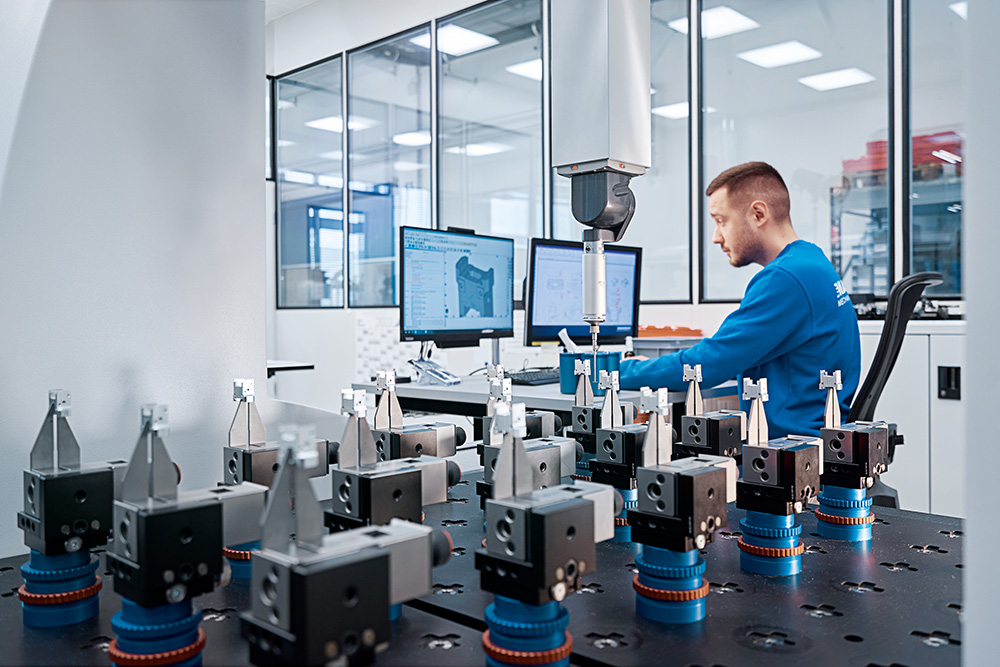

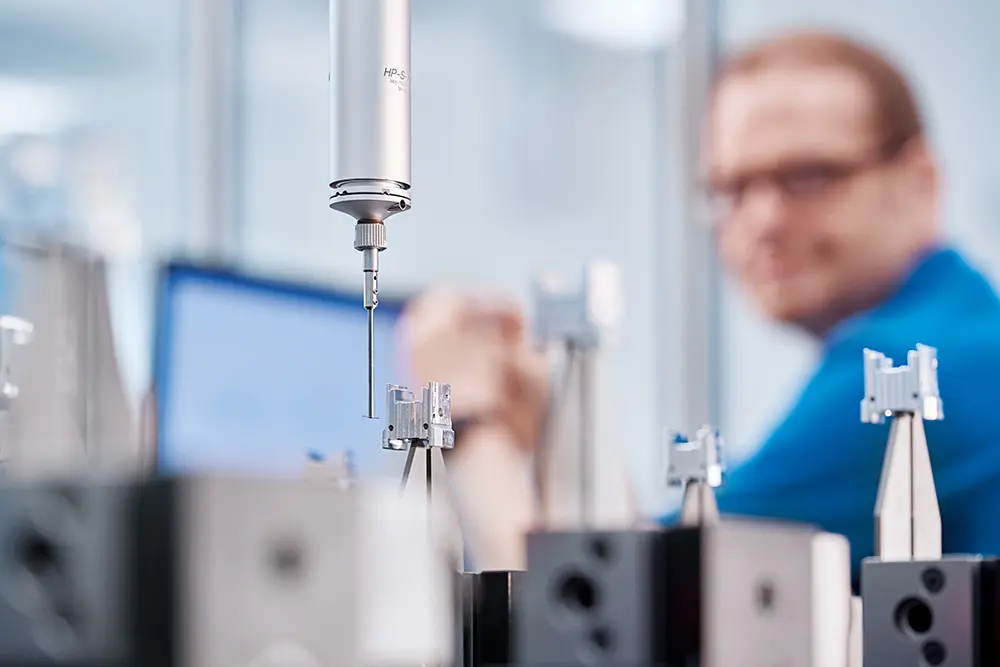

- 5 coordinate measuring machines for tactile measurement and scanning, accuracy 1.4 µm / 300 mm
- 2 climate-controlled measuring rooms, VDI Class 1, ± 0.4°C over 24 hours
- Conditioning area for components prior to measurement
- Optical measuring equipment, measuring microscopes, and roughness measuring devices
Measuring room Quality Class 1
Stable ambient conditions are essential for reproducible results. Temperature and humidity are continuously monitored and documented. This enables traceability of conditions and changes.
Components can be conditioned prior to measurement so temperature differences do not distort the validity of the results.
| Measuring room Quality Class | 1 (extract from VDI/VDE 2627-1) | |
| Designation | Precision measuring room | |
| Typical measurement task | Precision measurement | |
| Setpoint temperature | Standard reference temp., e.g. 20°C | |
| Permissible deviation limit | +/-0,4 K | |
| Temperature change over time (hour, day) | 0.2 K/h; 0.4 K/d | |
| Differences in temperature within room | 0.2 K/m |
Typical reasons customers commission us
Series release and recurring inspection
You receive standardized inspection reports for series releases so results remain interpretable over time and across lots.
Result: measurement report including statistical evaluation (as required)
First article inspection and First Article Inspection Report (EMPB)
We provide a report in your preferred format and with a characteristic structure that supports your release process. (EMPB is commonly used in practice as the term for a First Article Inspection Report.)
Result: measurement report / inspection report for release
Prototype measurement
Result: measurement report with clear, traceable assignment to drawing characteristics
Claims and root-cause analysis
When time pressure is high, objectivity matters. We measure the critical characteristics and document results so technical clarifications can be resolved faster.
Result: inspection report as a decision basis
Measurement system analysis (MSA) and capability analysis (Cp, Cpk)
If you need to confirm whether your measurement system and process are reliable, we support you with MSA and capability evaluations (e.g., Cp, Cpk). In short, MSA shows whether the measurement system is fit for purpose, and Cp/Cpk indicate how stable a process runs relative to the tolerance.
Surface requirements / visible surfaces
Roughness and surface characteristics are measured and documented according to specification.
Result: roughness/surface report
FAQs: Typical questions
Do you also measure parts that were not manufactured by August Manser AG?
Yes. We handle your measurement requests as an independent service provider. The key is the drawing or specification and the required output.
Which documents do you need?
A drawing (PDF) and, if available, 3D data (STEP). Helpful additional information includes the characteristics to be measured, the quantity, and your target date.
How quickly will we receive results?
This depends on inspection scope, quantities, and requirements. After your request, we confirm effort and delivery date.
What does a measurement report look like?
We document measured values and deviations clearly and traceably, with unambiguous assignment to drawing characteristics.
How precise does the measurement need to be?
The exact inspection scope is agreed with you in advance. The measurement strategy depends on tolerances, geometry, and the decision required (release, series production, clarification).
Do you also provide statistical evaluations?
Yes. We evaluate characteristics according to your requirements, for example across lots or time periods, so process stability can be assessed.
